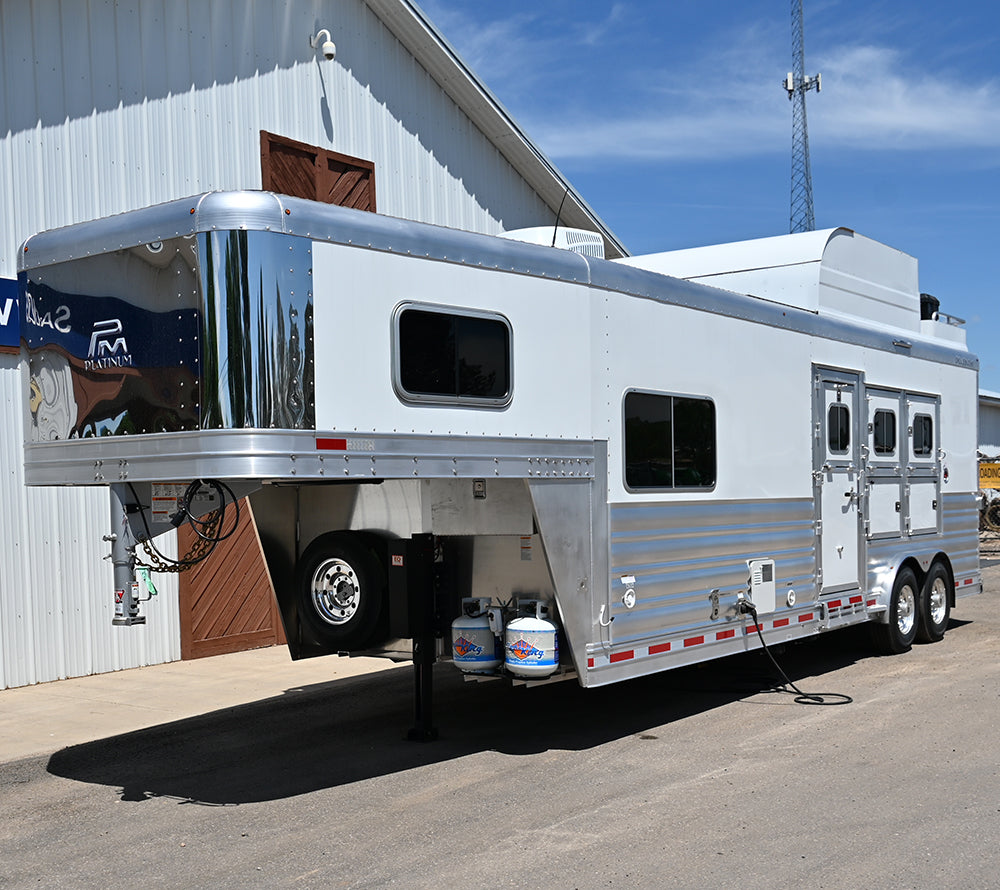

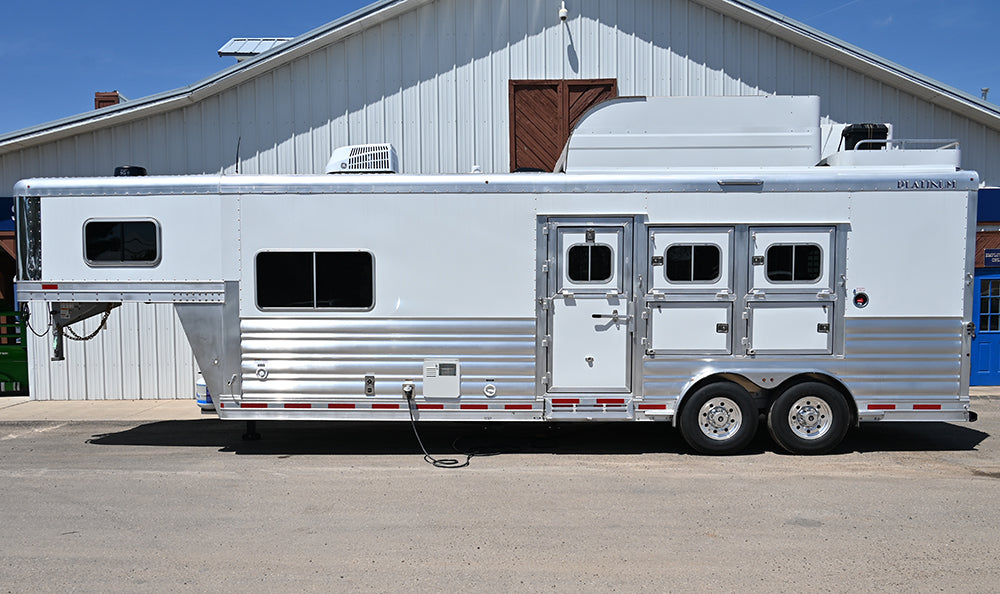

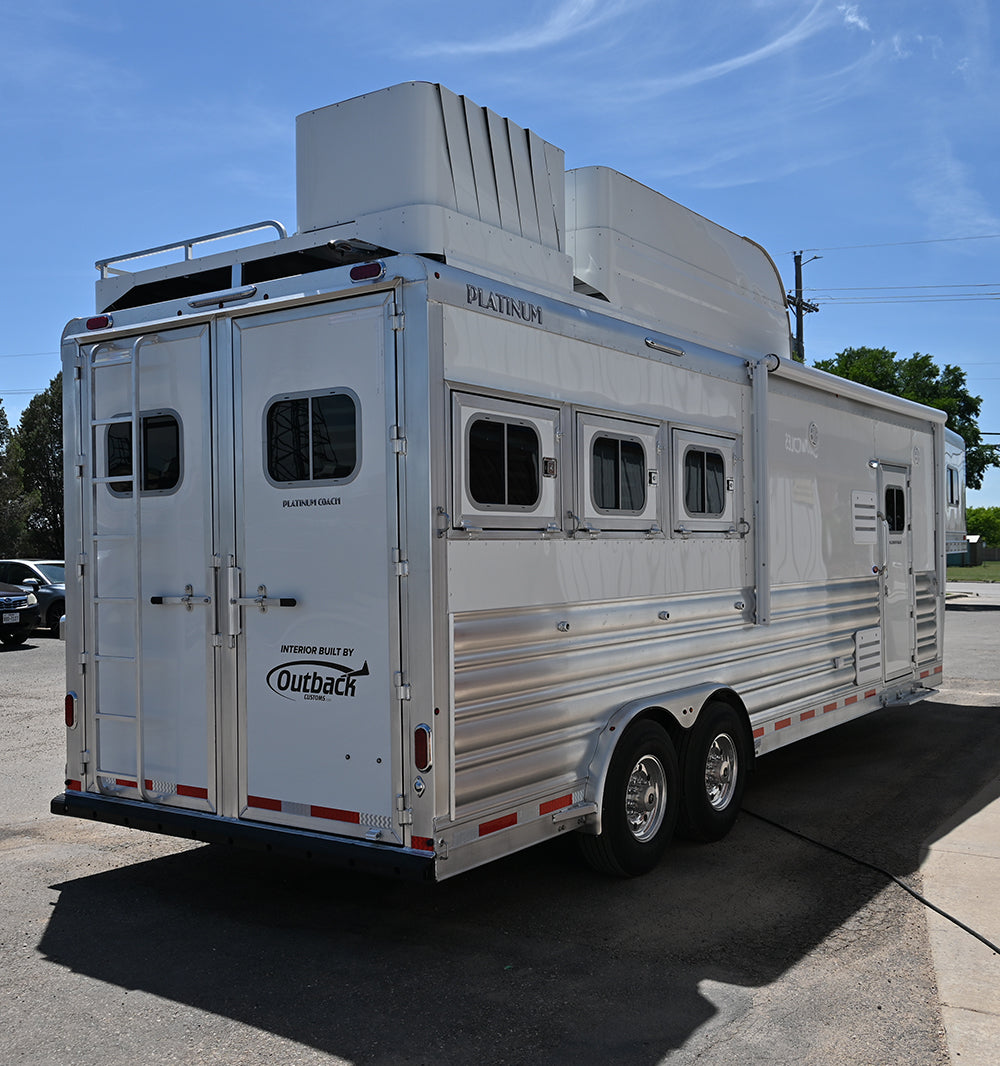

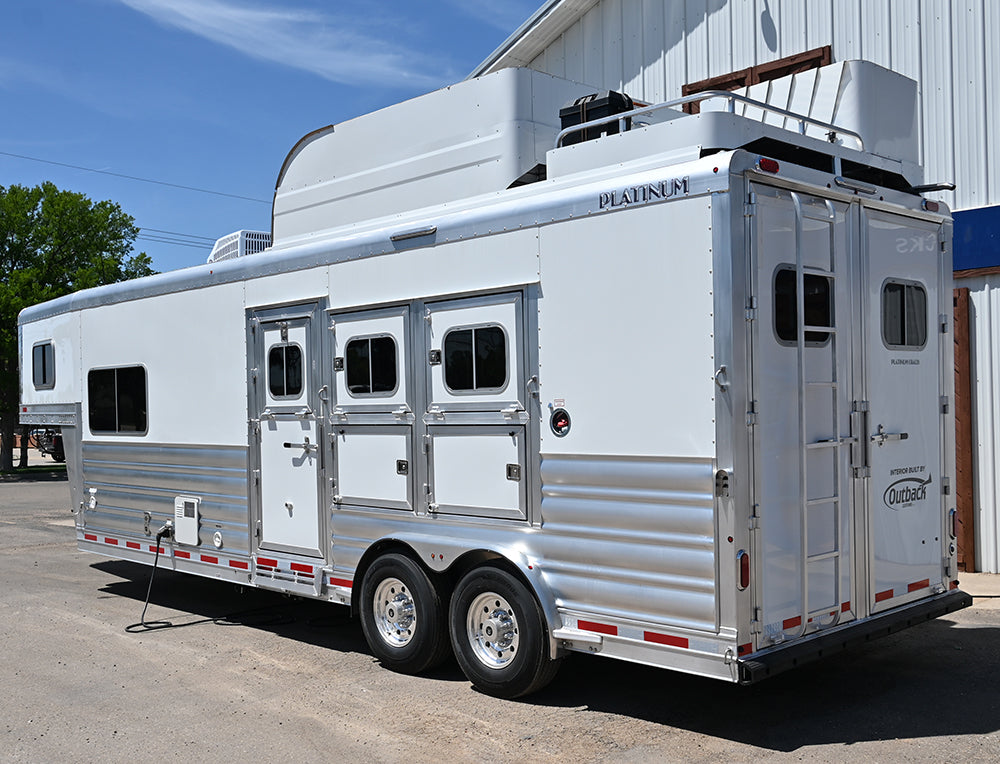

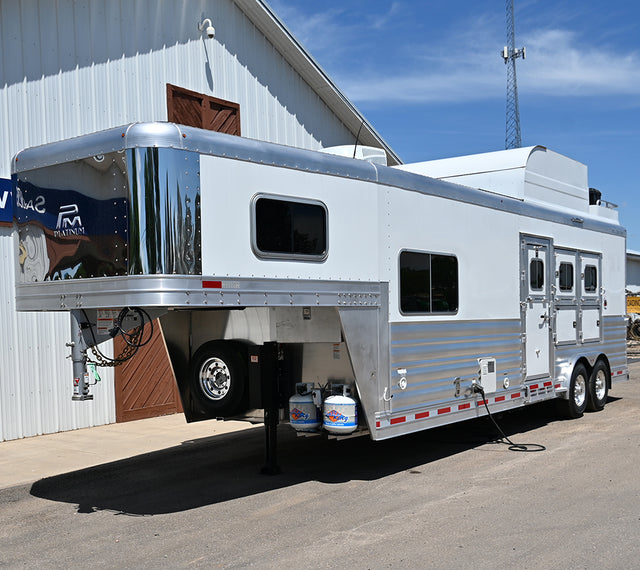

2025 Platinum 3 Horse 10' Outback Living Quarter Trailer

Travel in comfort and style with the 2025 Platinum 3 Horse Trailer featuring a 10' Outback Customs Living Quarters. Designed for both performance and luxury—this trailer offers top-tier craftsmanship, solid aluminum construction, mangers, drop-downs, and a spacious, fully-equipped interior living space for life on the road.

First Glance

• 2025 Platinum Coach

• 3 Horse Side Load

• 10’8” short wall LQ by Outback Conversions

• 4000 watt Onan generator on roof

• 8’ wide x 8’ tall x 25’ long deck

• 6’ Hay Pod

• Equalizer Jack

• Financing (WAC) and delivery available

• Trades entertained

• Located in Amarillo Texas

Horse Trailer Specs

• 2025 year model

• Manufacturer: Platinum

• 3 Horse Coach model

• All aluminum (floor, sides, roof, & frame). Pre painted white aluminum skin on top and aluminum slats on bottom

• 8’ wide x 25’ long box x 8’ tall

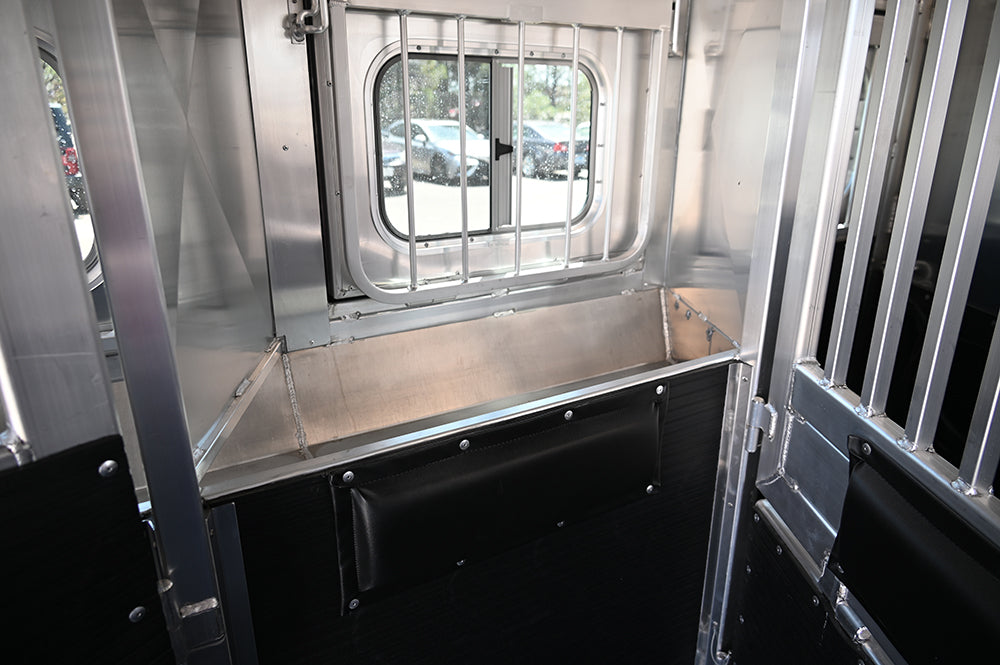

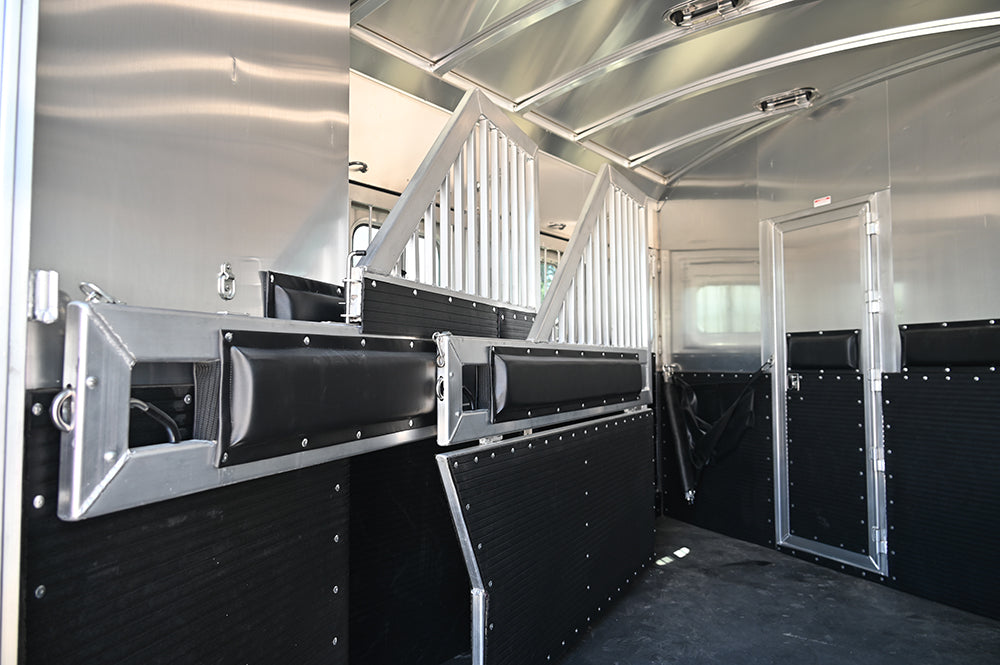

• (3)Drop down windows on head wall and bars

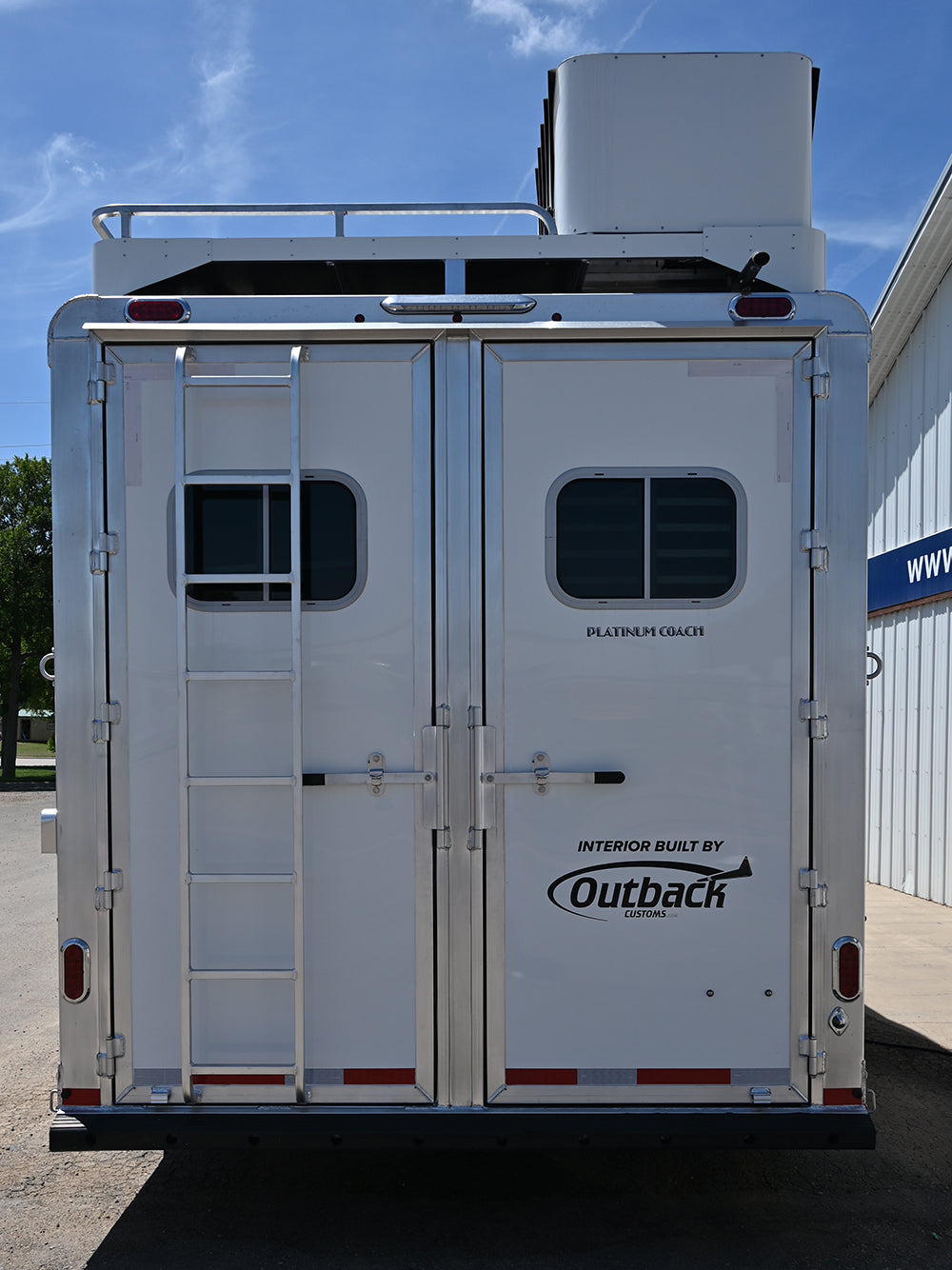

• (3)Drop Down windows on rump wall

• 2 – 7000 lb rubber torsion axles

• Electric brakes on both axles

• GVWR weight: 17,938LBS

• HANKOOK ST235/85R16 14 ply tires

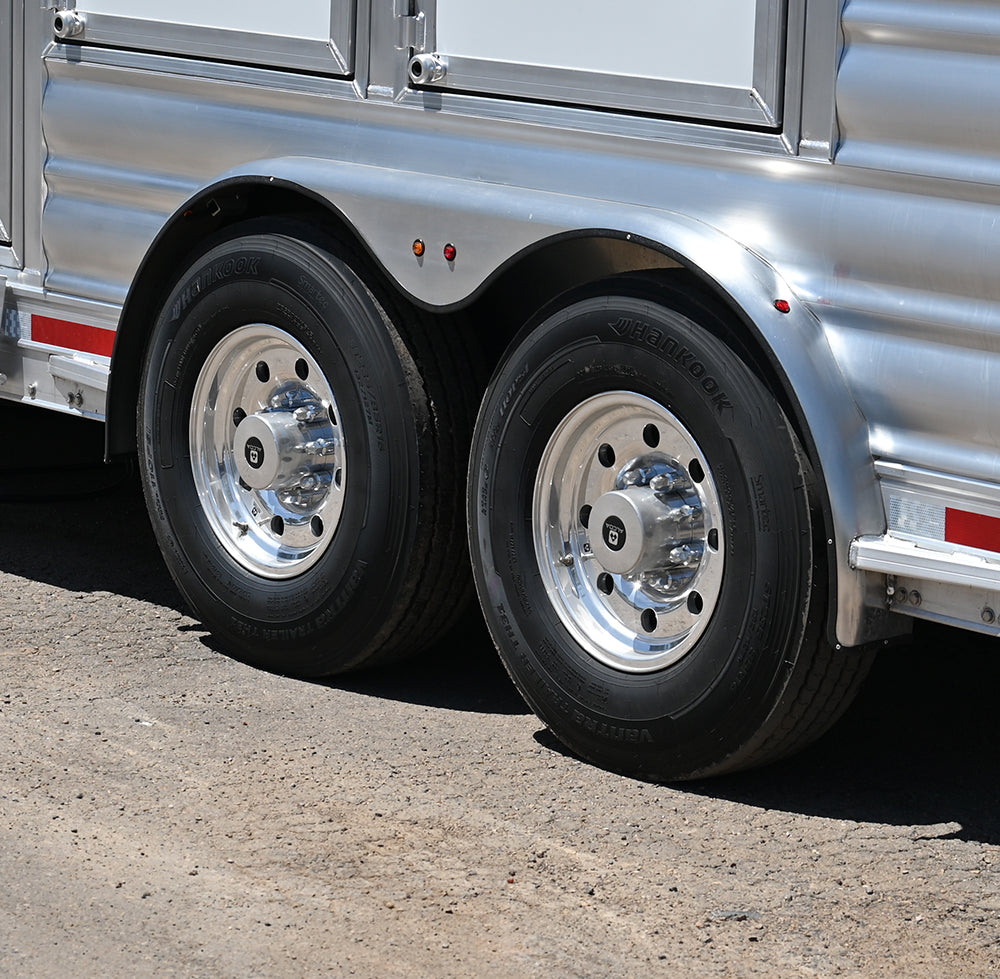

• 8 Lug 17.5” Aluminum Alcoa Wheels

• Spare included

• Rubber dock bumper

• Escape door on street side

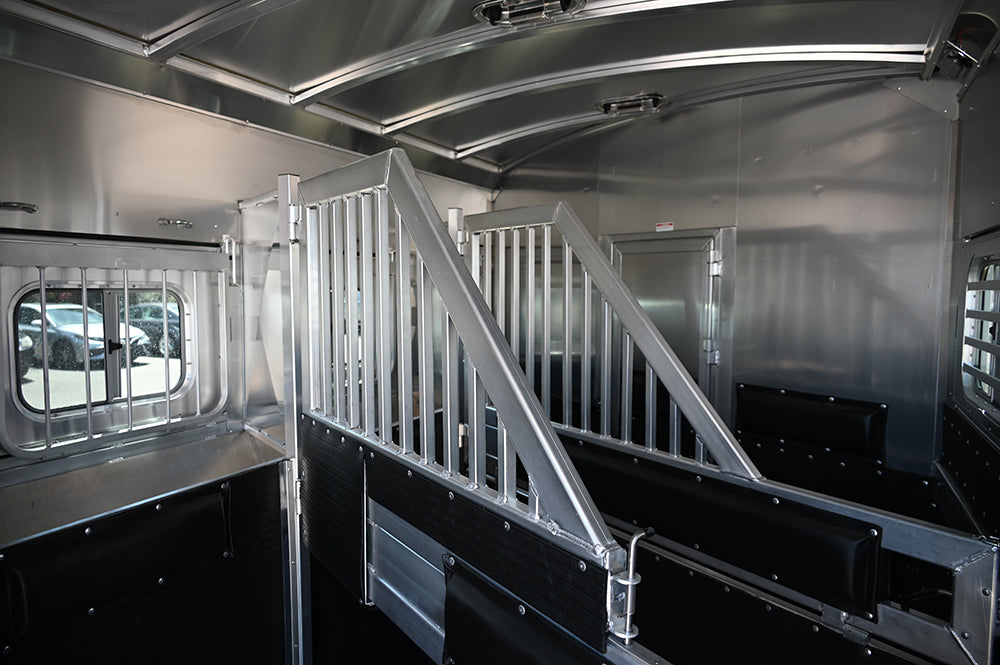

• 2 dividers

• Stall width measurements (rump wall measurements)  40”-40”-44”

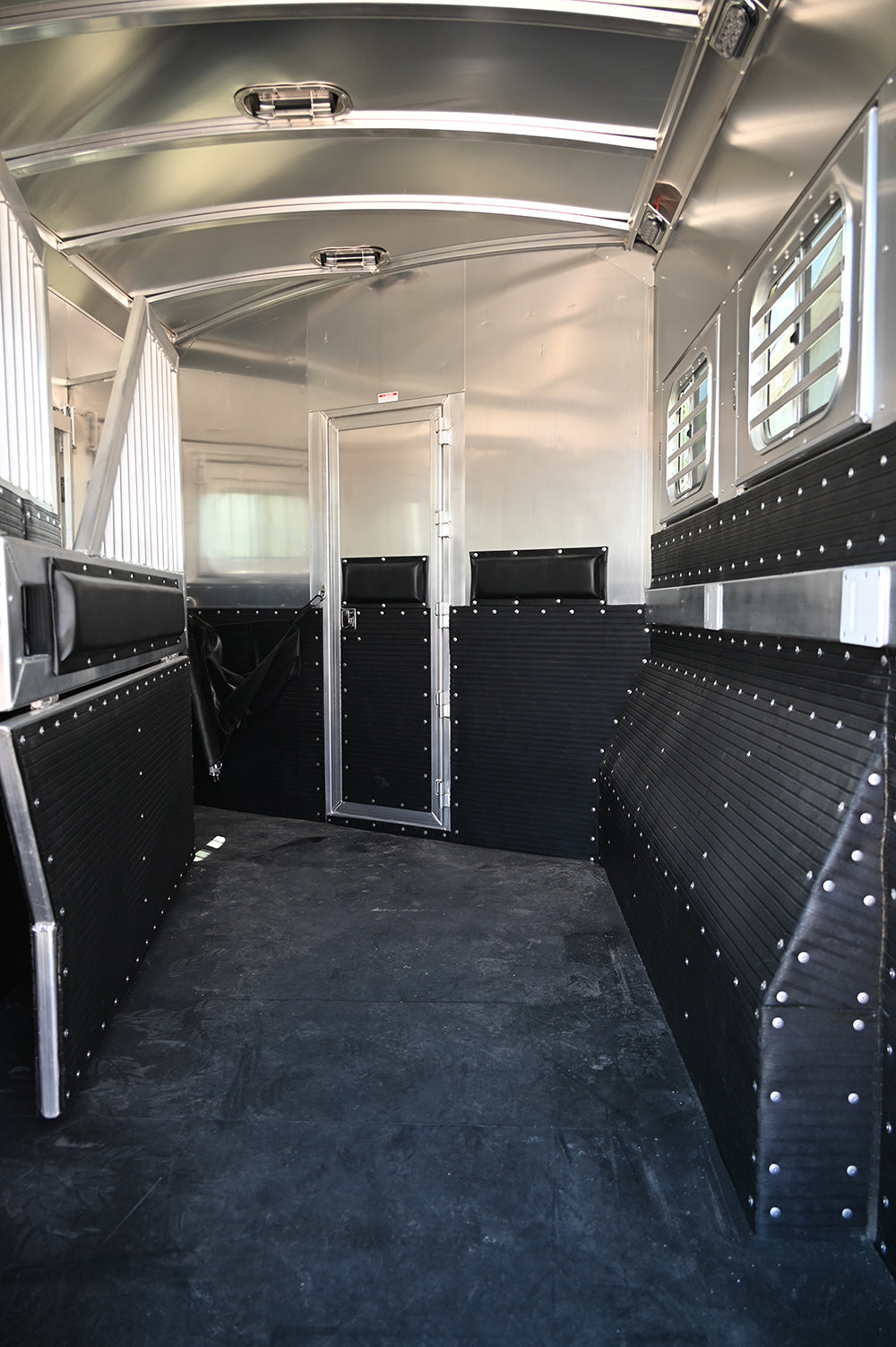

• Walls rubber lined

• Rubber Mats in horse area

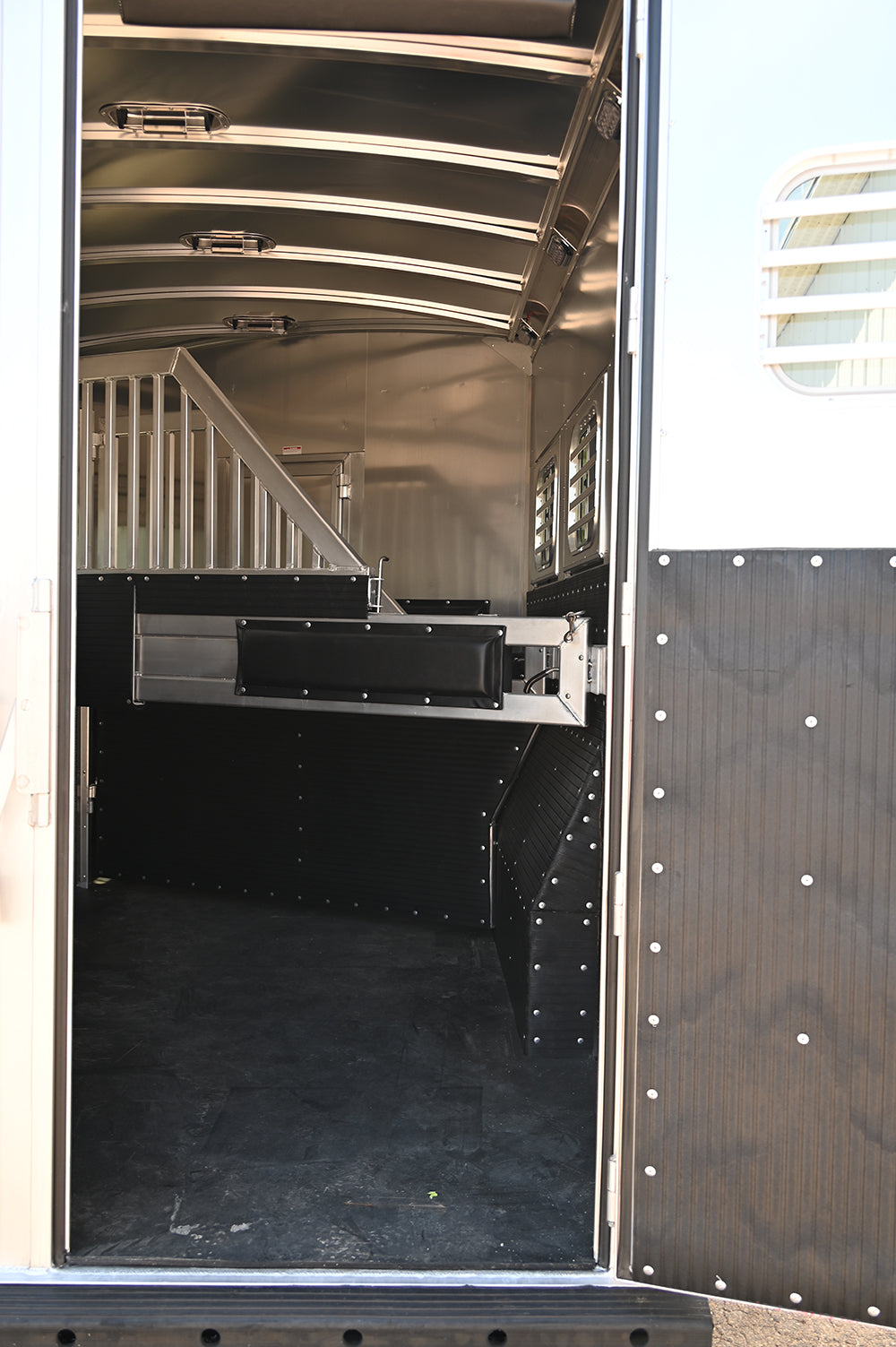

• Bulkhead Walk through door

• 3 cargo light in horse compartment

• 3 LED Load Lights ( 1 on Street Side, 1 on Curbside, 1 on Rear)

• 3 pop up roof vents

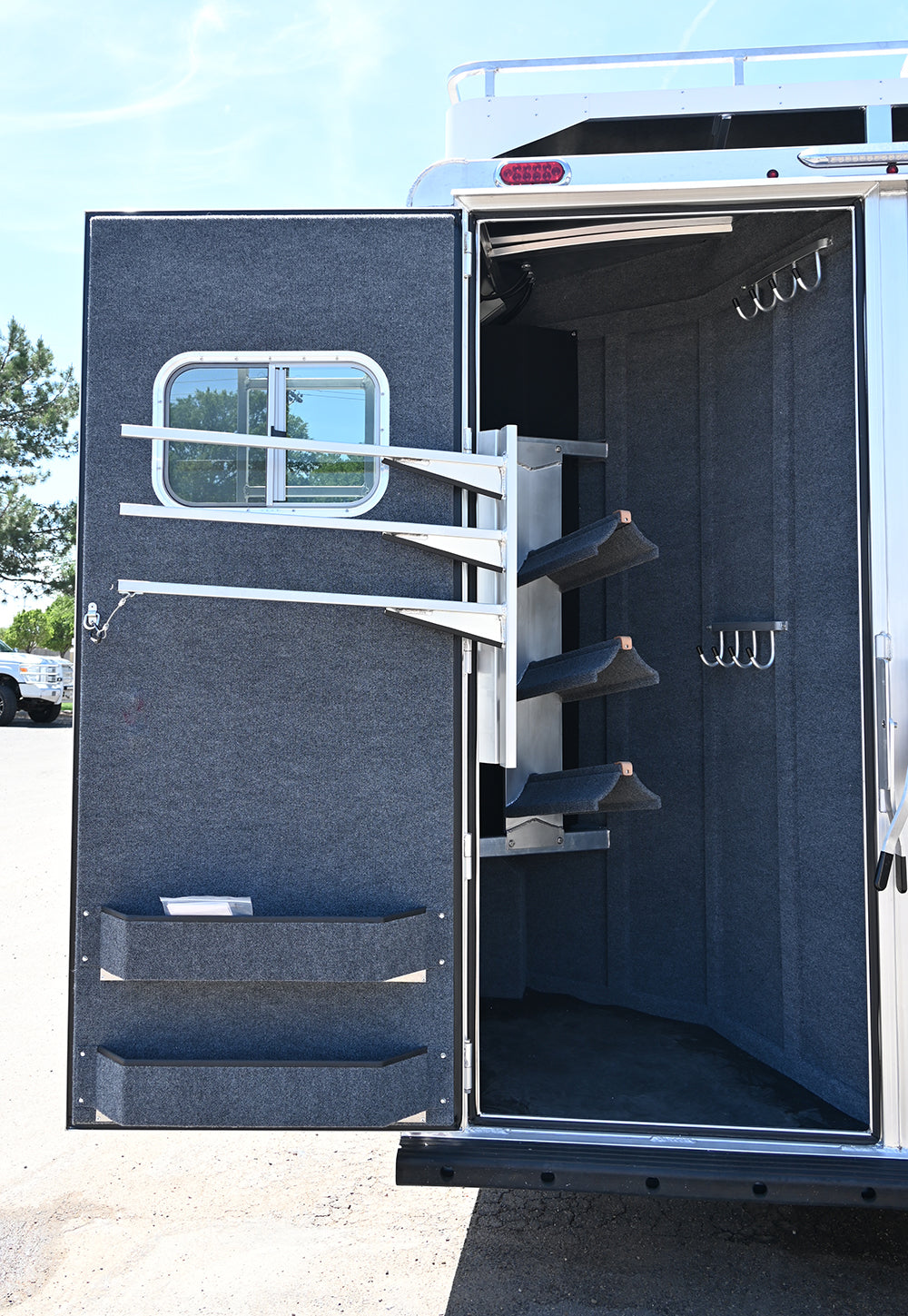

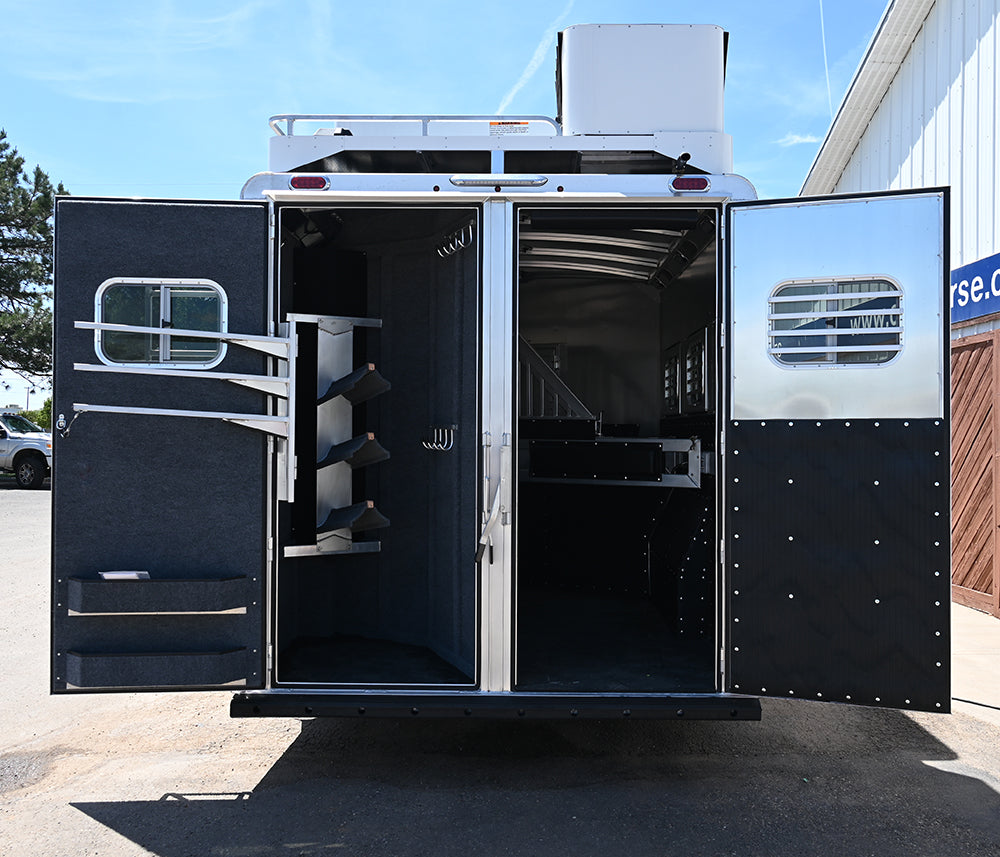

• Rear tack includes: 3 saddle racks, 15 hooks, 3 bar swinging blanket bar, 2 brush trays,fully carpeted walls.

• hydraulic Equalizer Jack

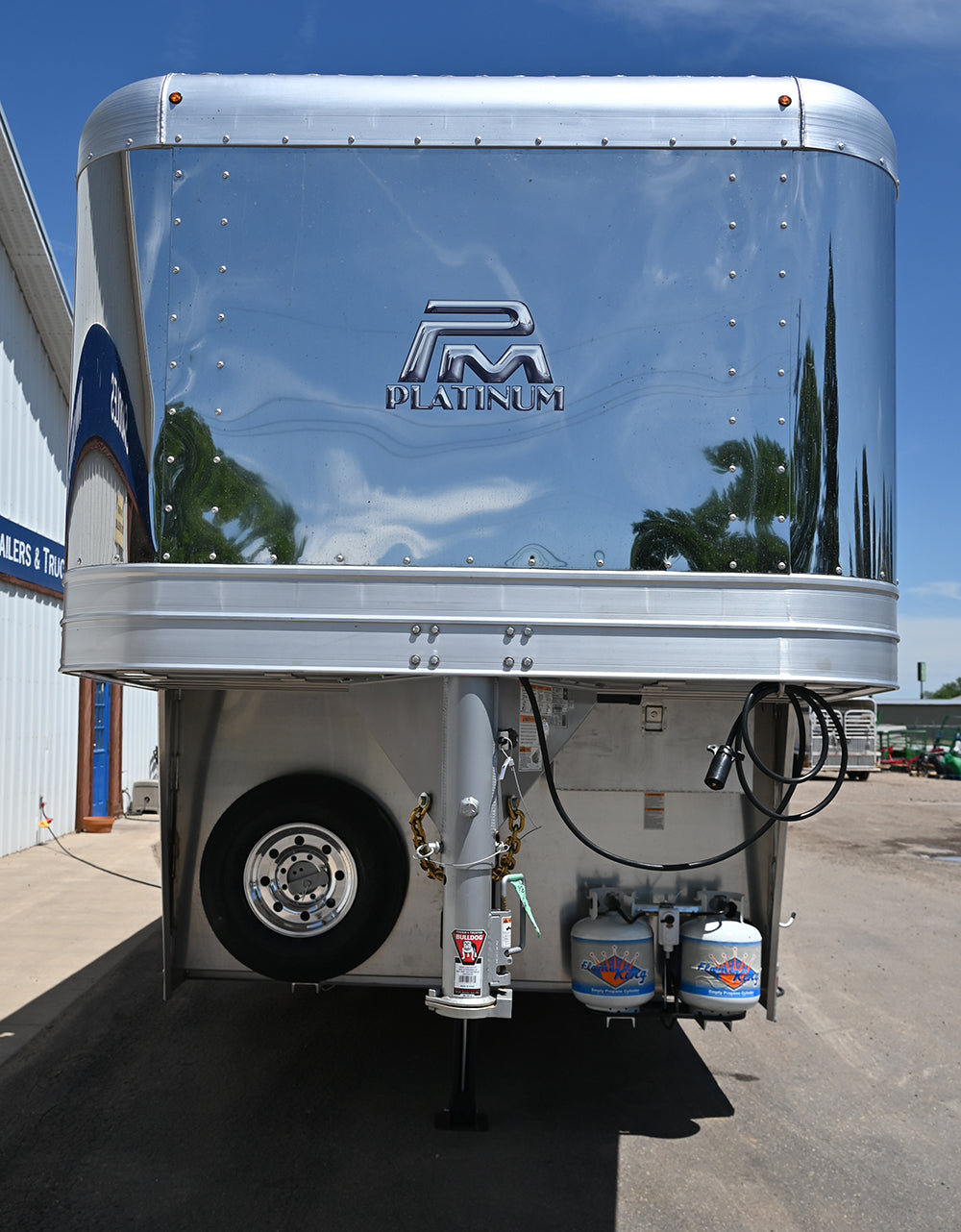

• 2- 20lb propane tanks

• 2-12Volt battery in double aluminum battery box under nose

• 7 way RV light plug, 2 5/16” Bulldog Quick Coupler, safety chains, and emergency brake system

• 6’ Haypod  with 4000 watt Onan generator

Living Quarter Specs

• 10’8” Short Wall

• LQ by Outback Conversions

•  RVIA Certified

• Allante (soft touch) walls and ceiling

• Walnut Satin cabinets

• Linoleum floor

• Leather Instert Wood Valances above all Windows

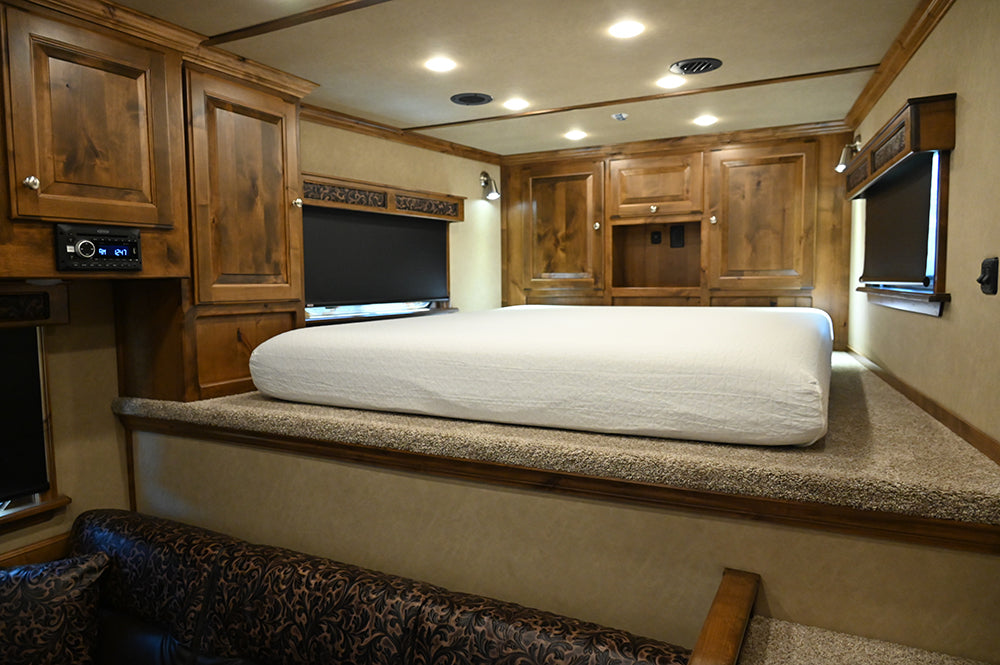

• Queen size memory foam mattress in bed

• Sliding Screen door at LQ Door

• Wooden pocket door into bathroom

• Flat screen TV in Living area

• 72” Sofa On Curbside wall

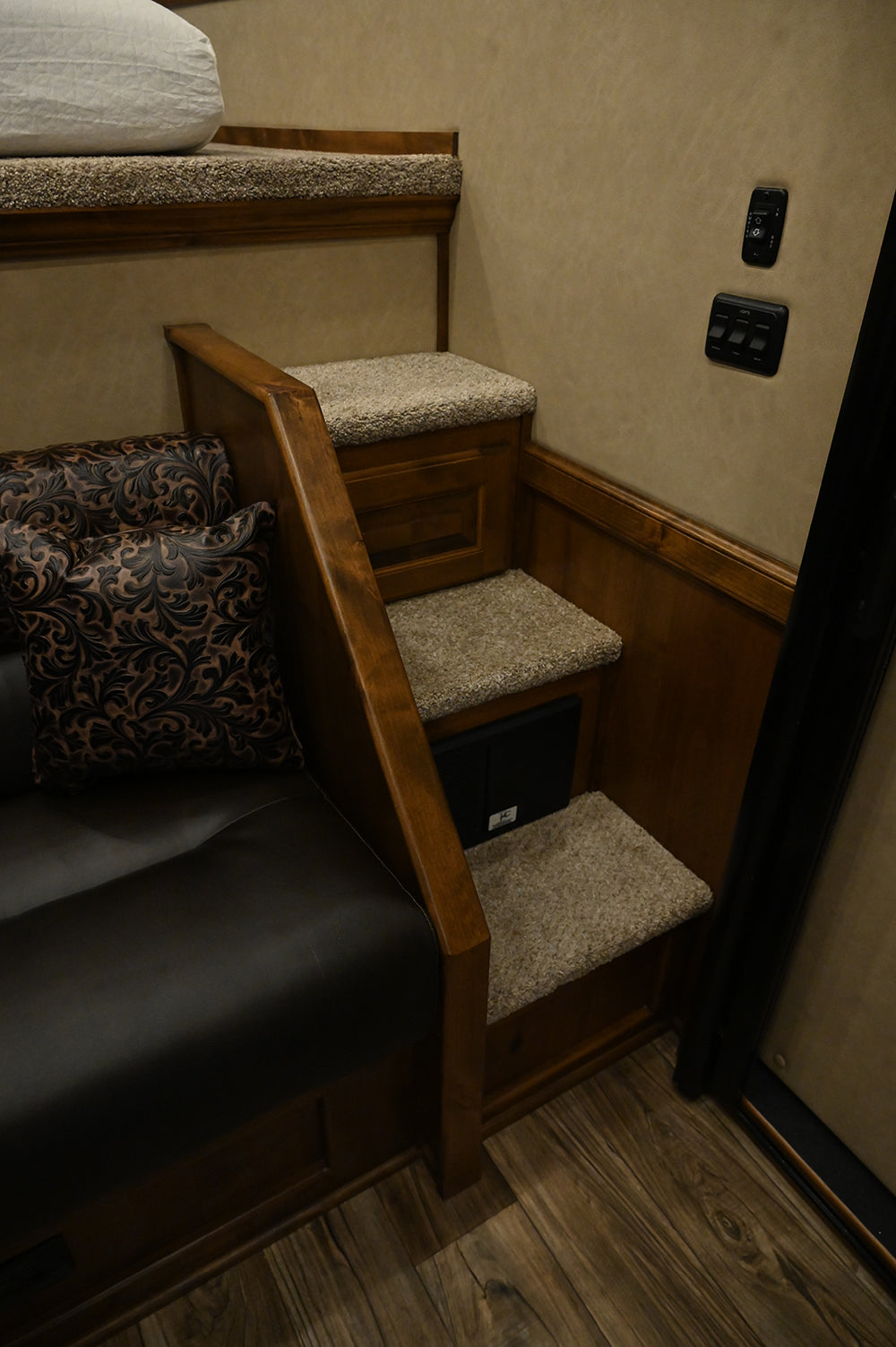

• Sofa Sleeper on Riser Wall

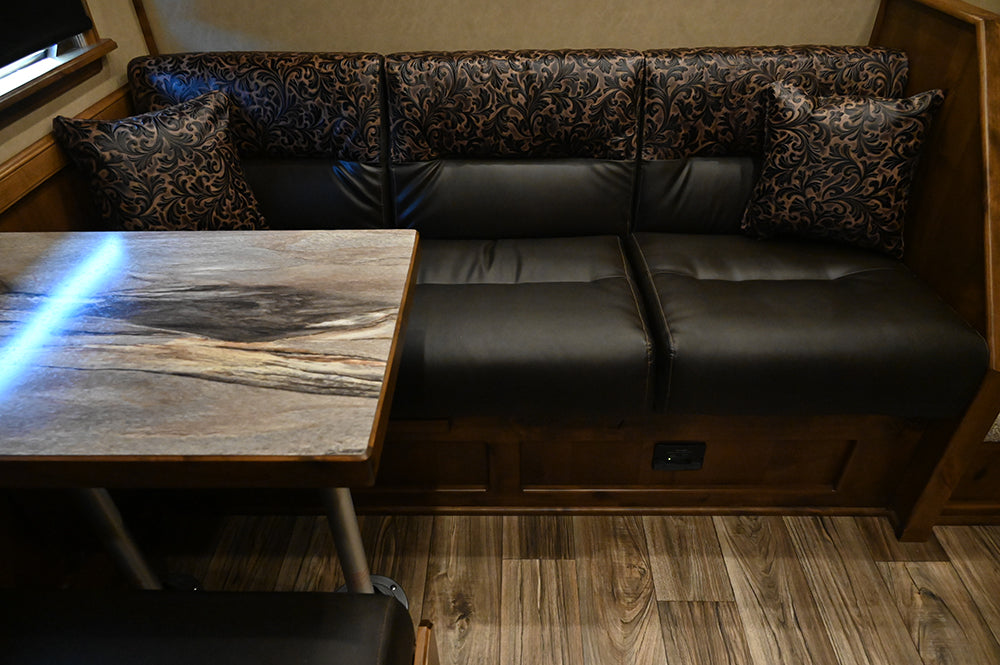

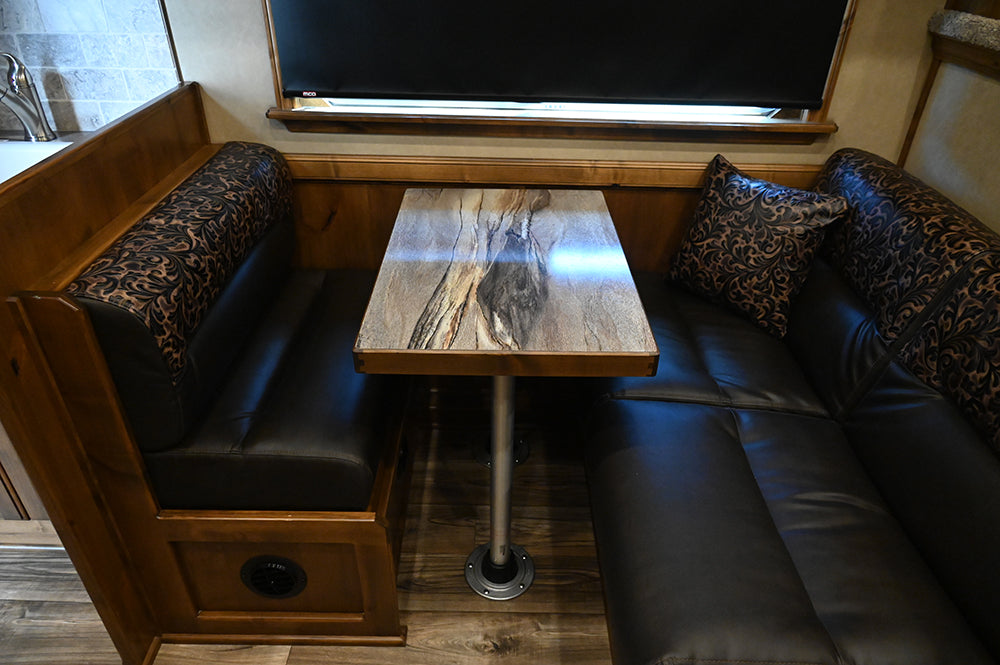

• Half Dinette on Street side wall

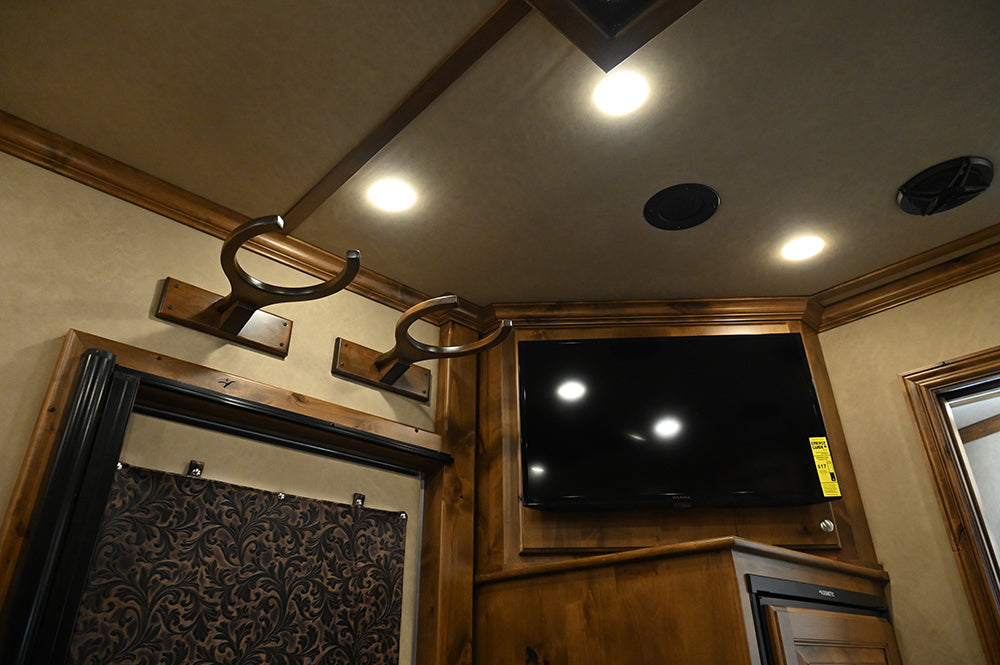

• 2 wood hat racks above LQ door

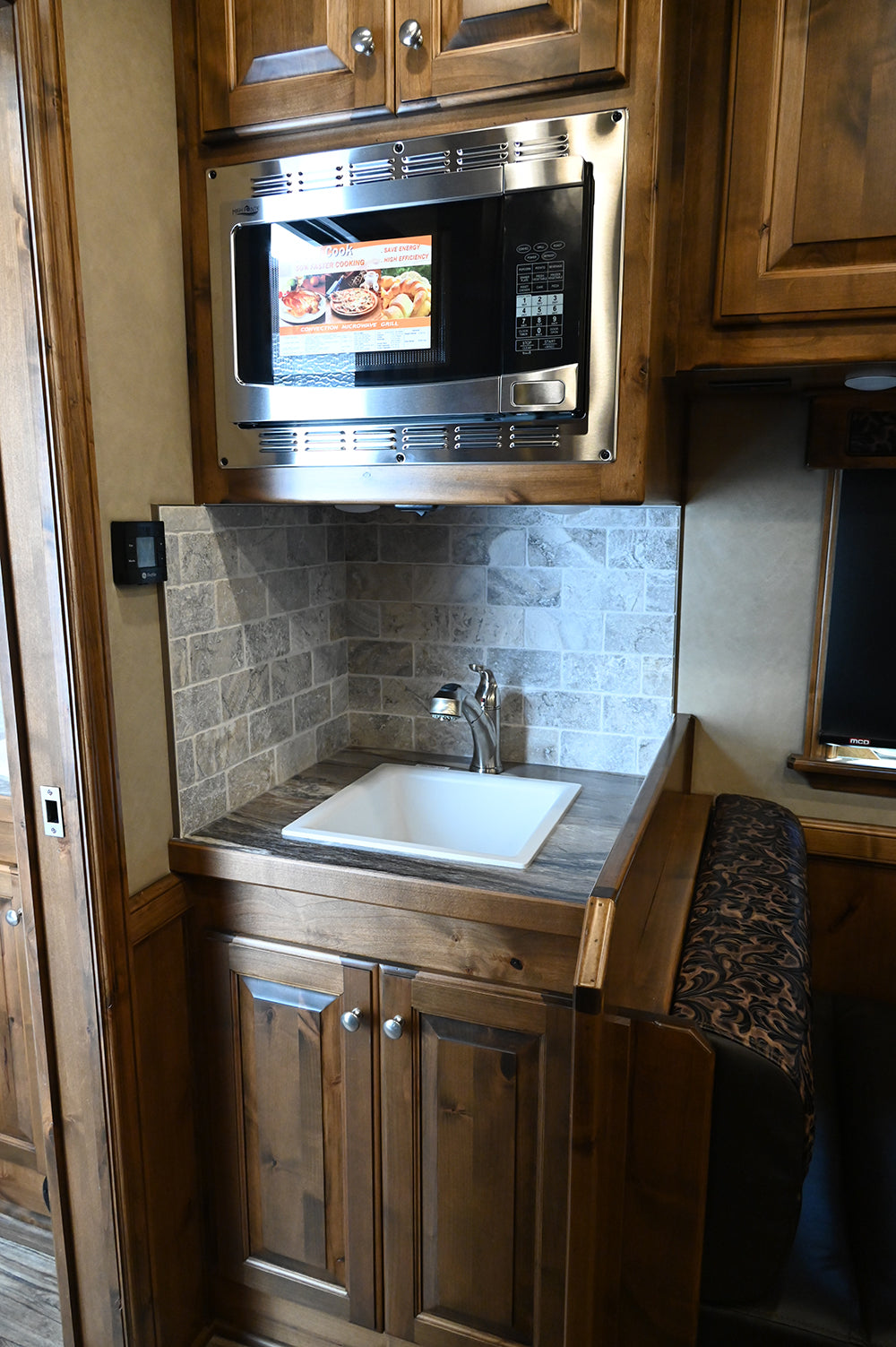

• Highpoint brand Microwave

• Kitchen sink

• Dometic 6.0 LP/110V Refrigerator and Freezer

• 2 windows in nose

• 13,500BTU air conditioner (ducted)

• Ducted LP Furnace

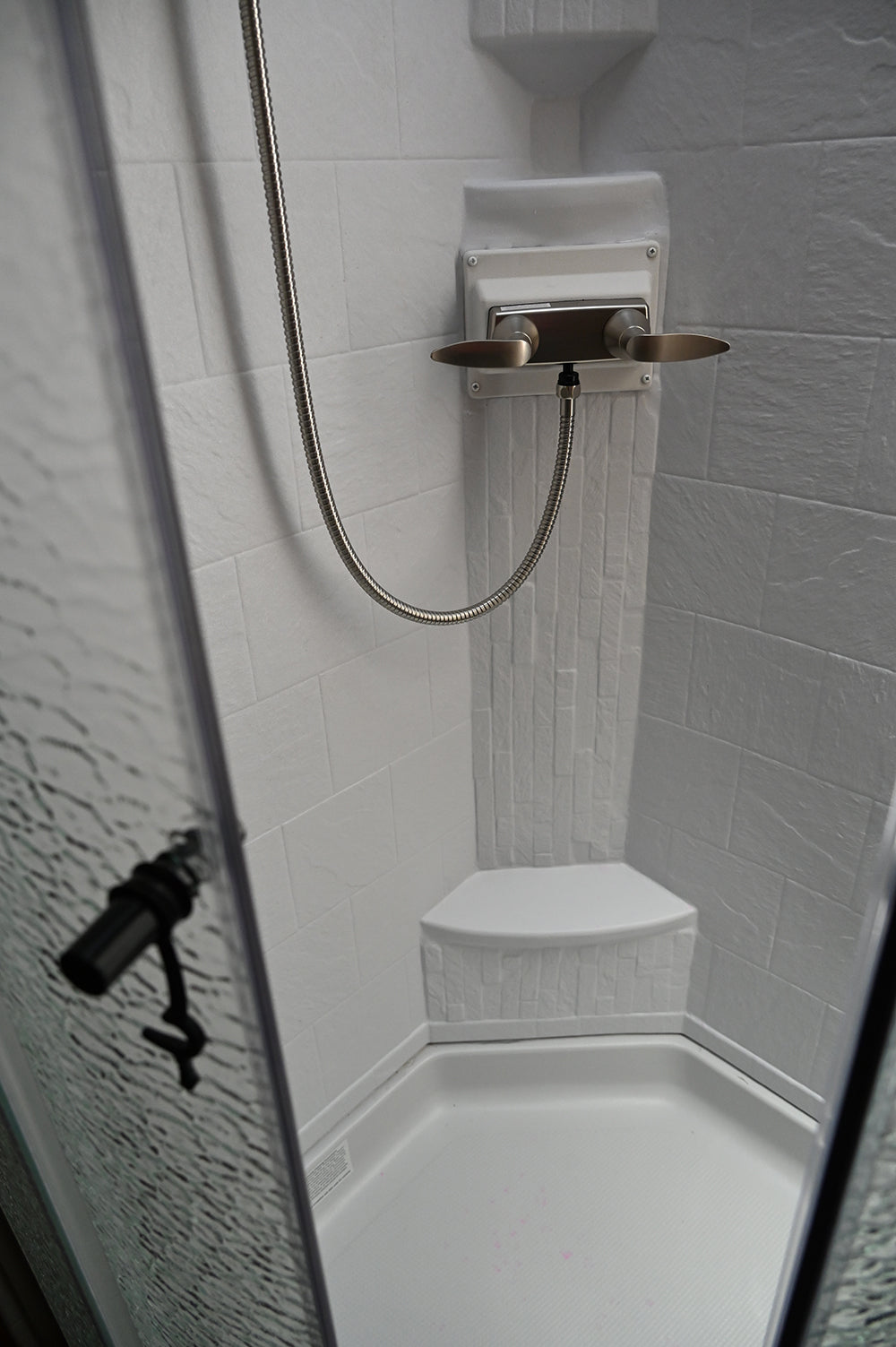

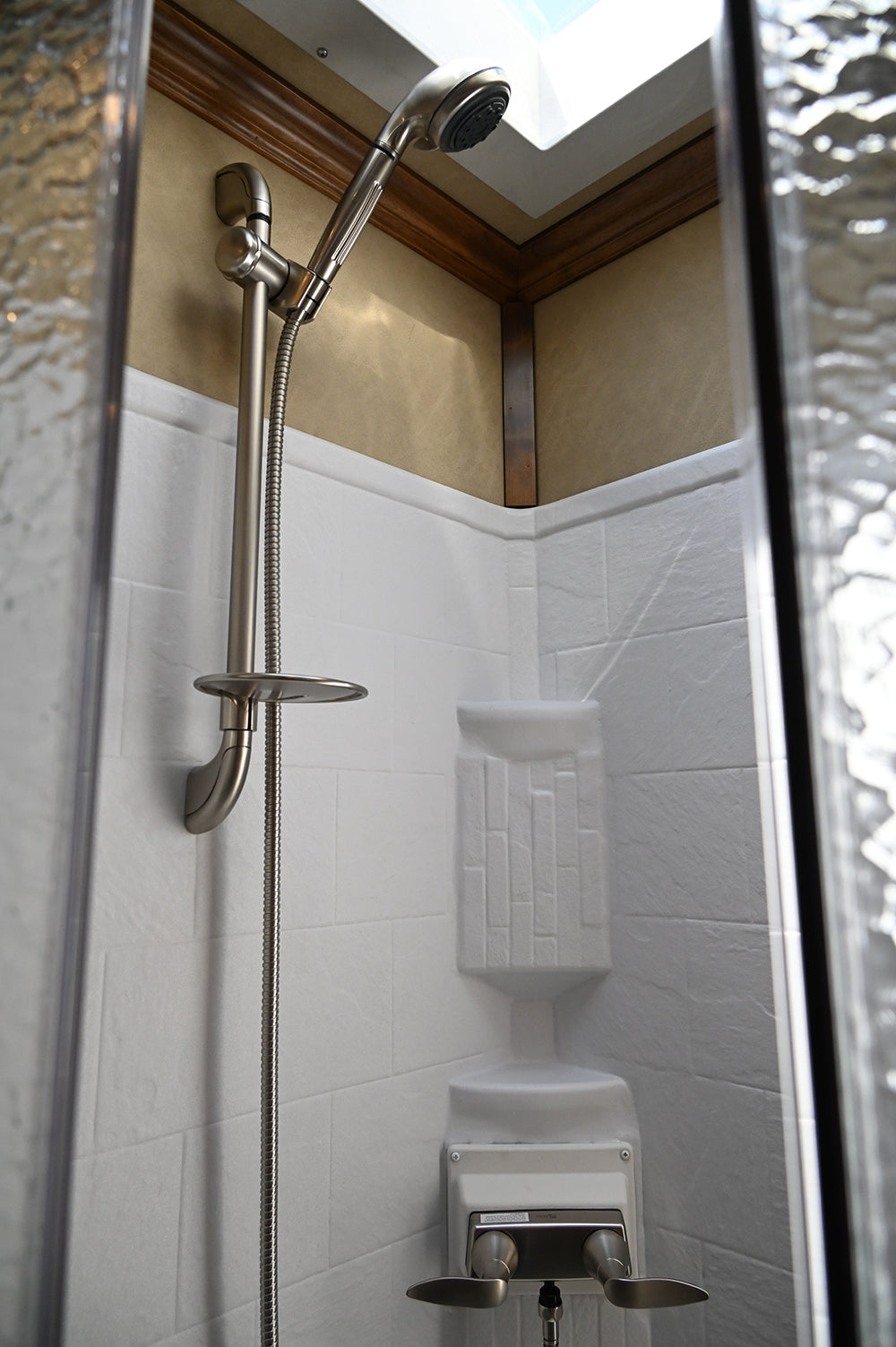

• Radial Shower

• Shower and toilet in separate room

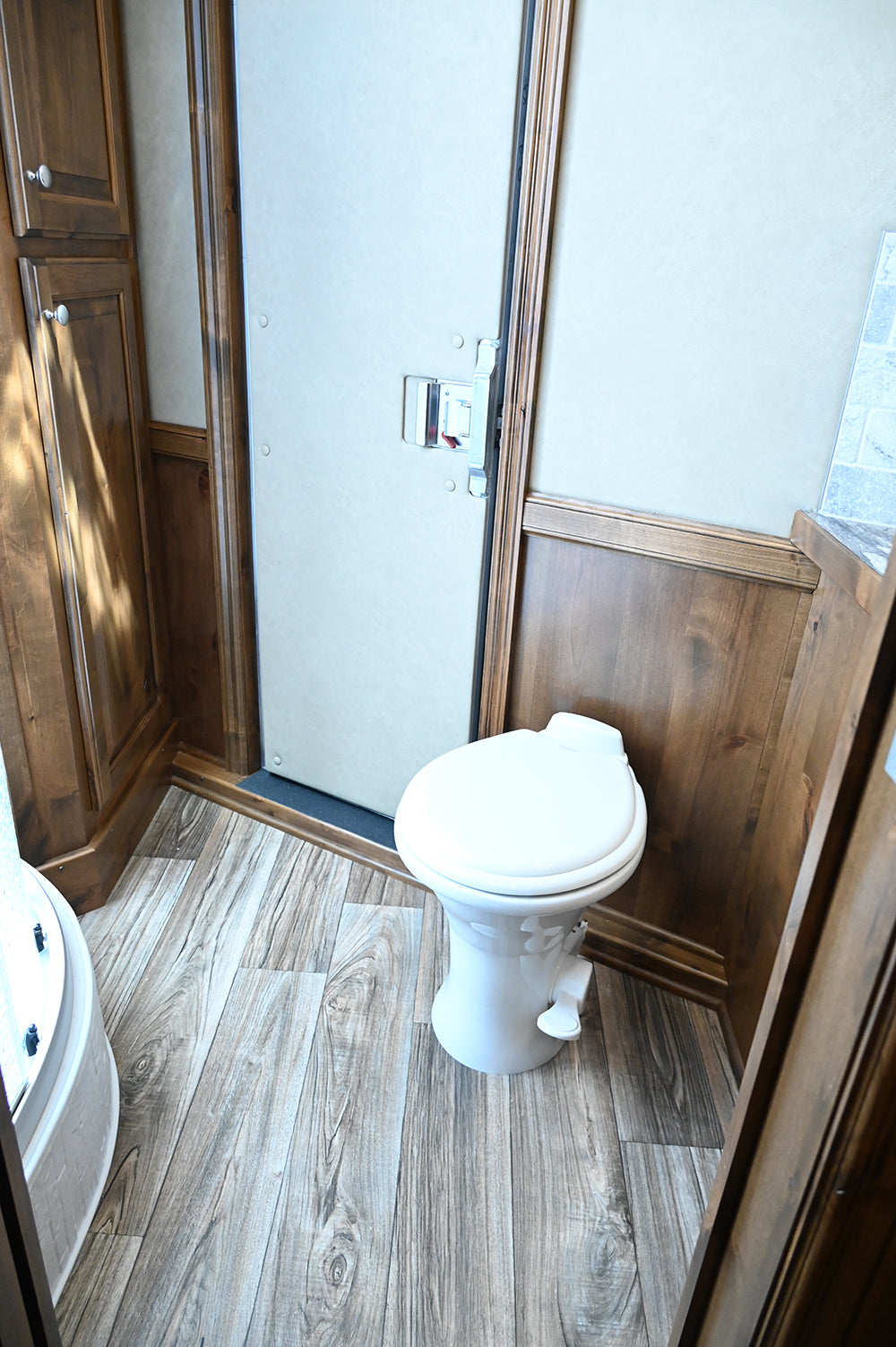

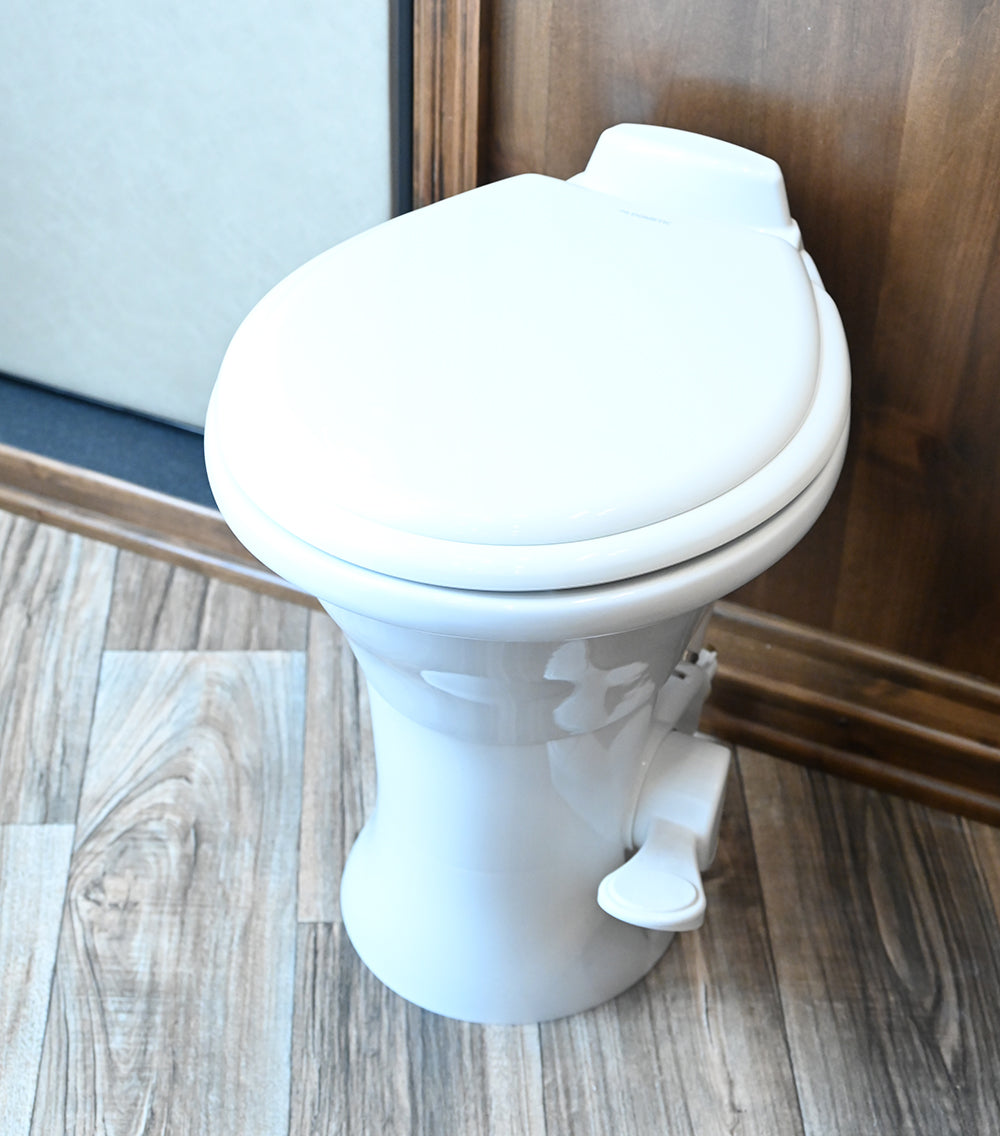

• Porcelain toilet

• Pop up vent in ceiling

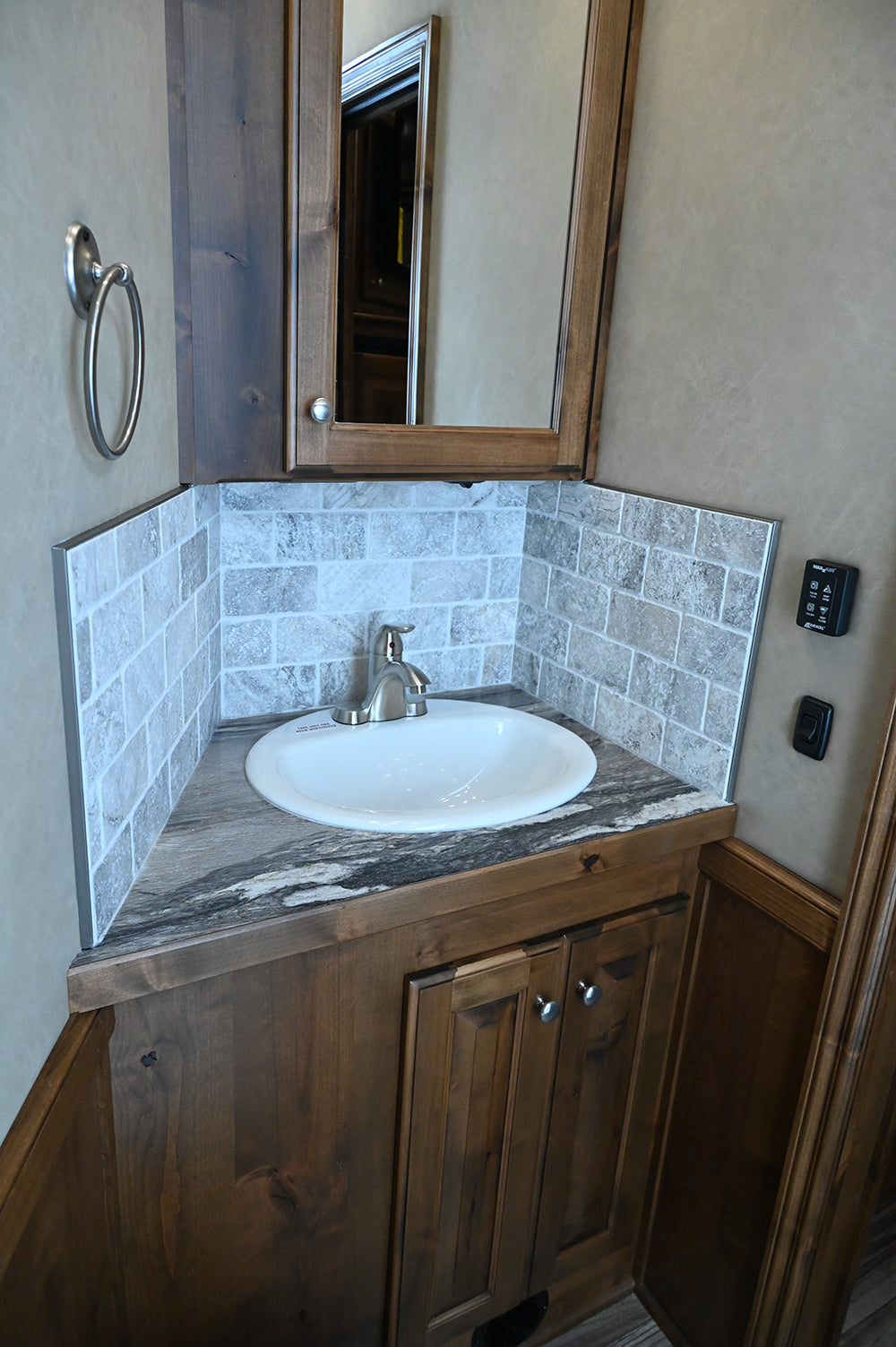

• Circular sink and vanity mirror in bathroom

• 6 gallon hot water heater

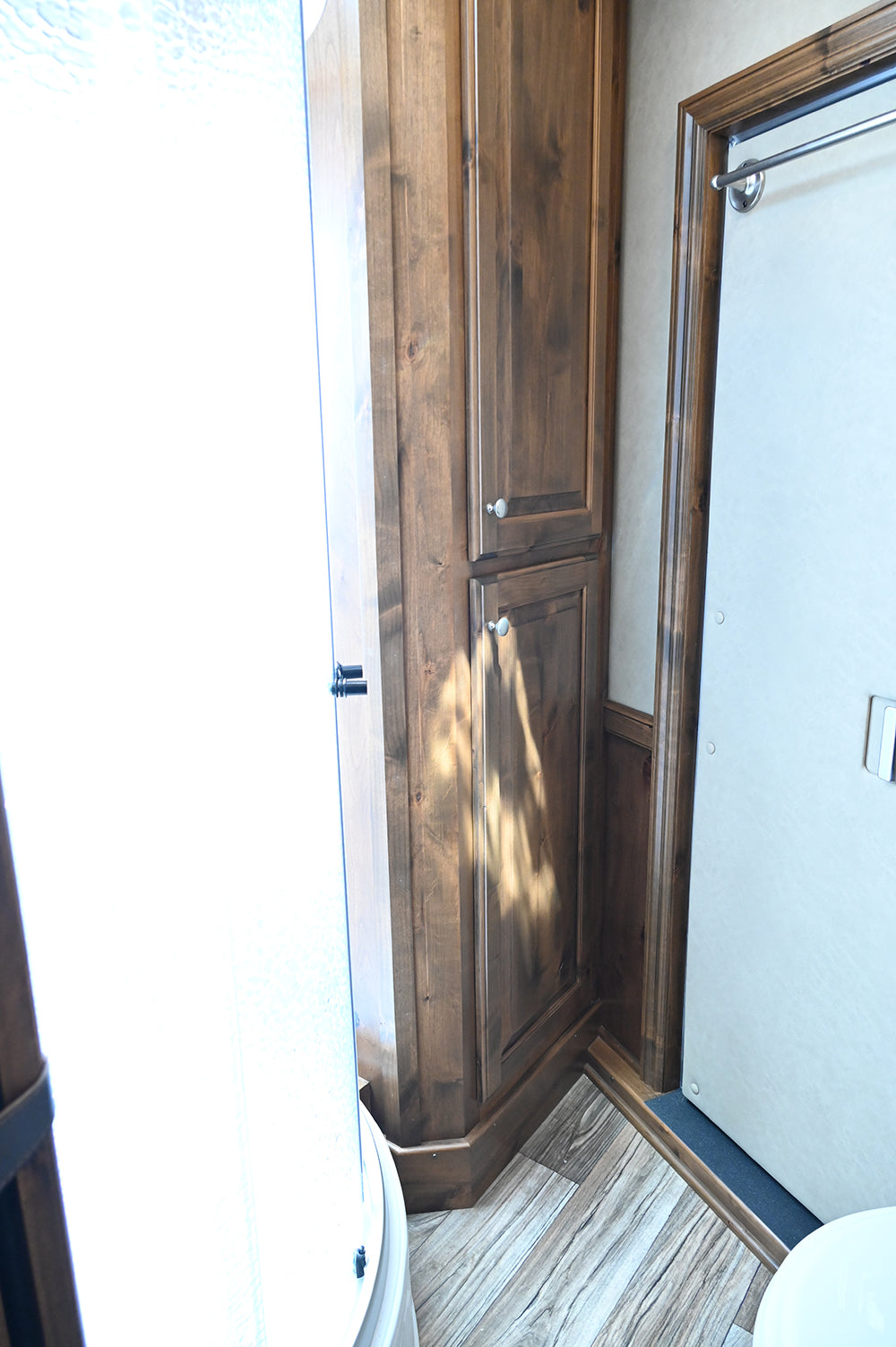

• Double Hang up Closet in Bathroom

• Cabinets on Street side Wall and in Nose of trailer

• Fresh water tank (approximately 40 gallons)

• Black and gray tanks

• Safety systems: smoke detector, LP detector, and fire extinguisher

• 4000 watt Onan generator (gasoline) located on Landing behind Haypod with. Remote start in LQ

DELIVERY AND FINANCING

• Delivery available in the United States.

• Financing available WAC

• Located in Amarillo, TX
